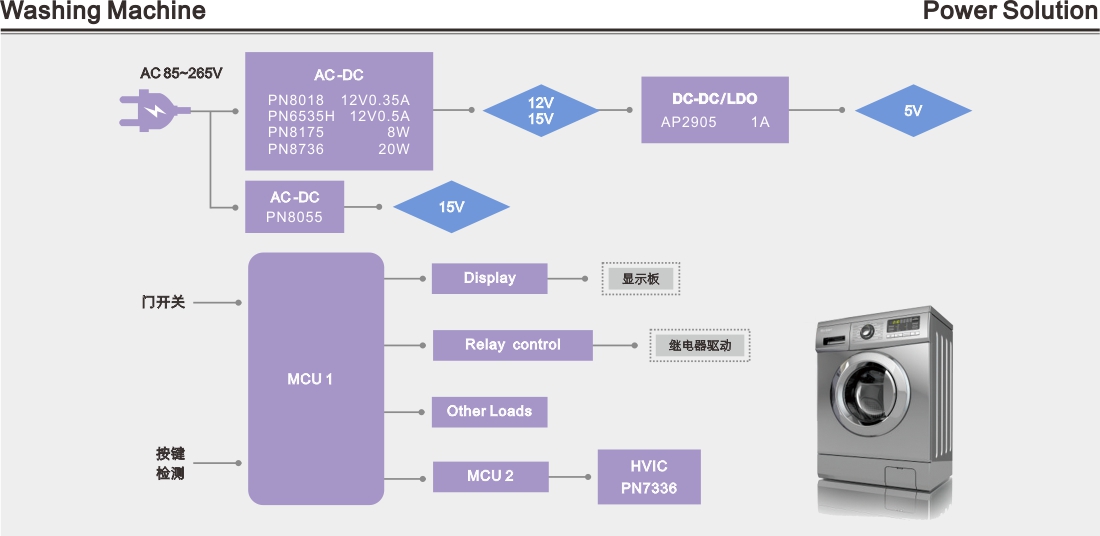

解决方案 Solution
| Product | Character | SW Voltage | Standby Power | RDS(on) | VDD Operation Voltage | Output Power | Idlimt | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| PN8018 | CV Buck/Buck-boost Converter | 650V | <100mW | 12Ω | 10~24V | 12V,0.4A | 0.67A | SOP7 | Output 12V |
| PN6535H | CV Buck/Buck-boost Converter | 650V | <100mW | 6Ω | 10~24V | 12V/0.3A | 0.9A | SOP8/DIP8 | Output 12V |
| Product | Character | SW Voltage | Standby Power | RDS(on) | Adapter Output Power | Open Frame Output Power | Frequency | Package | VDD Operation Voltage |
|---|---|---|---|---|---|---|---|---|---|
| PN8175 | AC/DC Converter wit h Internal Self-Supply Circuit | 800V | <50mW | 5Ω | 8W | 8W | 124kHz | DIP7 | 10~18V |
| PN8736 | PWM Converter | 800V | <100mW | 2Ω | 18W | 24W | 45kHz | DIP8 | 9~35V |
| Product | Character | VOFFSET(max) | IO+/-(typ.) | Vin | Ton/Off(typ.) | Deadtime(typ.) | OUT phase | Package | Cross Reference |
|---|---|---|---|---|---|---|---|---|---|
| PN7336 | 3-Phase Bridge Driver | 600V | 200/350mA | 10V~20V | 540&540ns | 300ns | LO1,2,3/HO1,2,3 out of phase with LIN1,2,3/HIN1,2,3 | SOP28 | - |
| Product | Character | Maximum Effciency | Operating Voltage | Quiescent Iq | Output Voltage | Output Versions | Accuracy | Package | Cross Reference |
|---|---|---|---|---|---|---|---|---|---|
| AP2905 | 100~375kHz 0.7A Synchronous PWM | 93% | 6～40V | 300μA | 2~12V | Adj/5V | ±2% | SOT23-5L |
