解决方案 Solution

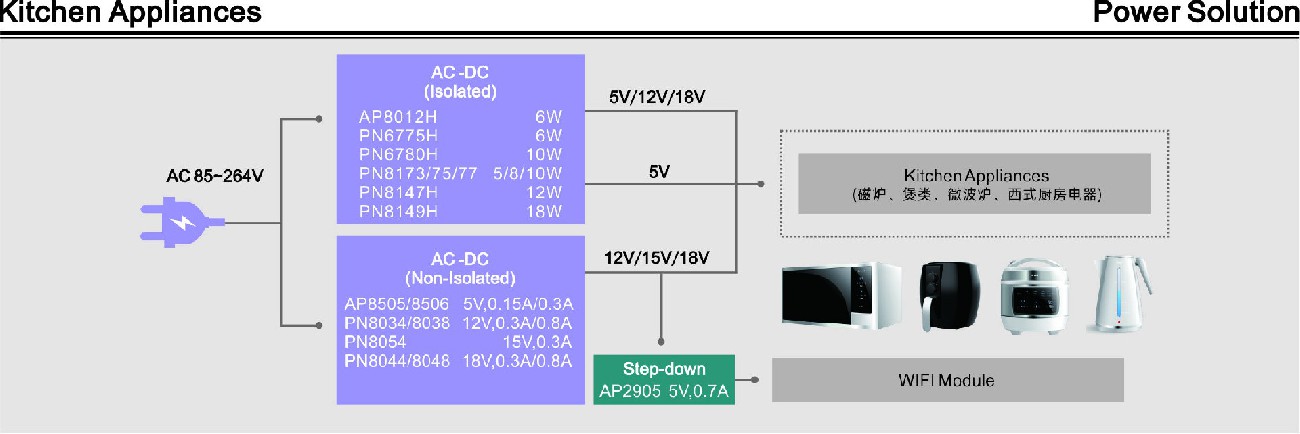

我们可以为您的生活家电提供1-24W非隔离Buck/Boost、隔离Flyback/PSR的一站式的完整AC/DC解决方案，使客户的系统性能优秀、灵活可靠，并具有成本竞争力。
| Product | Character | SW Voltage | Standby Power | RDS(on) | Adaptor Output Power | Open Frame Output Power | Frequency | Package | VDD Operation Voltage |
|---|---|---|---|---|---|---|---|---|---|
| AP8012H | PWM converter | 800V | <150mW | 25Ω | 6W | 8W | 45kHz | DIP8/SOP8 | 9~35V |
| PN8147H | Low Standby-Power Off-line PWM Converter | 800V | <50mW | 8Ω | 12W | 18W | 60kHz | DIP8 | 9~24V |
| PN8149H | Low Standby-Power Off-line PWM Converter | 800V | <50mW | 2.5Ω | 18W | 30W | 60kHz | DIP8 | 9~24V |
| PN8173 | AC/DC Converter with Internal Self-Supply Circuit | 800V | <50mW | 14Ω | 5W | 5W | 124kHz | DIP7 | 10~18V |
| PN8175 | AC/DC Converter with Internal Self-Supply Circuit | 800V | <50mW | 5Ω | 8W | 8W | 124kHz | DIP7 | 10~18V |
| PN8177 | AC/DC Converter with Internal Self-Supply Circuit | 800V | <50mW | 2.5Ω | 10W | 10W | 124kHz | DIP7 | 10~18V |
| Product | Character | SW Voltage | Standby Power | RDS(on) | VDD Operation Voltage | Output Power | CC/CV precision | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| PN6775H | CC/CV PSR Converter | 800V | <50mW | 14Ω | 10~30V | 6W | ±5% | SOP8 | Charger/Adapter |
| PN6780H | CC/CV PSR Converter | 800V | <50mW | 3.5Ω | 10~30V | 12W/15W | ±5% | SOP8/DIP8 | Charger/Adapter |
| Product | Character | SW Voltage | Standby Power | RDS(on) | VDD Operation Voltage | Output Power | Idlimt | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| AP8505 | CV Buck/Buck-boost Converter | 650V | <50mW | 25Ω | - | 5V,0.2A | 0.33A | DIP7/SOP7 | Output 5V |
| AP8506 | CV Buck/Buck-boost Converter | 650V | <50mW | 18Ω | - | 5V,0.3A | 0.45A | SOP7 | Output 5V |
| PN8034 | CV Buck/Buck-boost Converter | 650V | <100mW | 18Ω | 10~24V | 12V,0.3A | 0.59A | DIP7/SOP7 | Output 12V |
| PN8038 | CV Buck/Buck-boost Converter | 650V | <100mW | 4Ω | 10~24V | 12V,0.6A | 1.70A | DIP7 | Output 12V |
| PN8044 | CV Buck/Buck-boost Converter | 650V | <100mW | 18Ω | 10~24V | 18V,0.3A | 0.58A | DIP8 | Output 18V |
| PN8048 | CV Buck/Buck-boost Converter | 650V | <100mW | 4Ω | 10~24V | 18V,0.6A | 1.65A | DIP8 | Output 18V |
| PN8054 | CV Buck/Buck-boost Converter | 650V | <100mW | 18Ω | 11~20V | 15V,0.3A | 0.6A | SOP7 | Output 15V |
| Product | Character | Maximum Effciency | Operating Voltage | Quiescent Iq | Output Voltage | Output Versions | Accuracy | Package | Cross Reference |
|---|---|---|---|---|---|---|---|---|---|
| AP2905 | 100~375kHz 0.7A Synchronous PWM | 93% | 6～40V | 300μA | 2~12V | Adj/5V | ±2% | SOT23-5L |
