解决方案 Solution

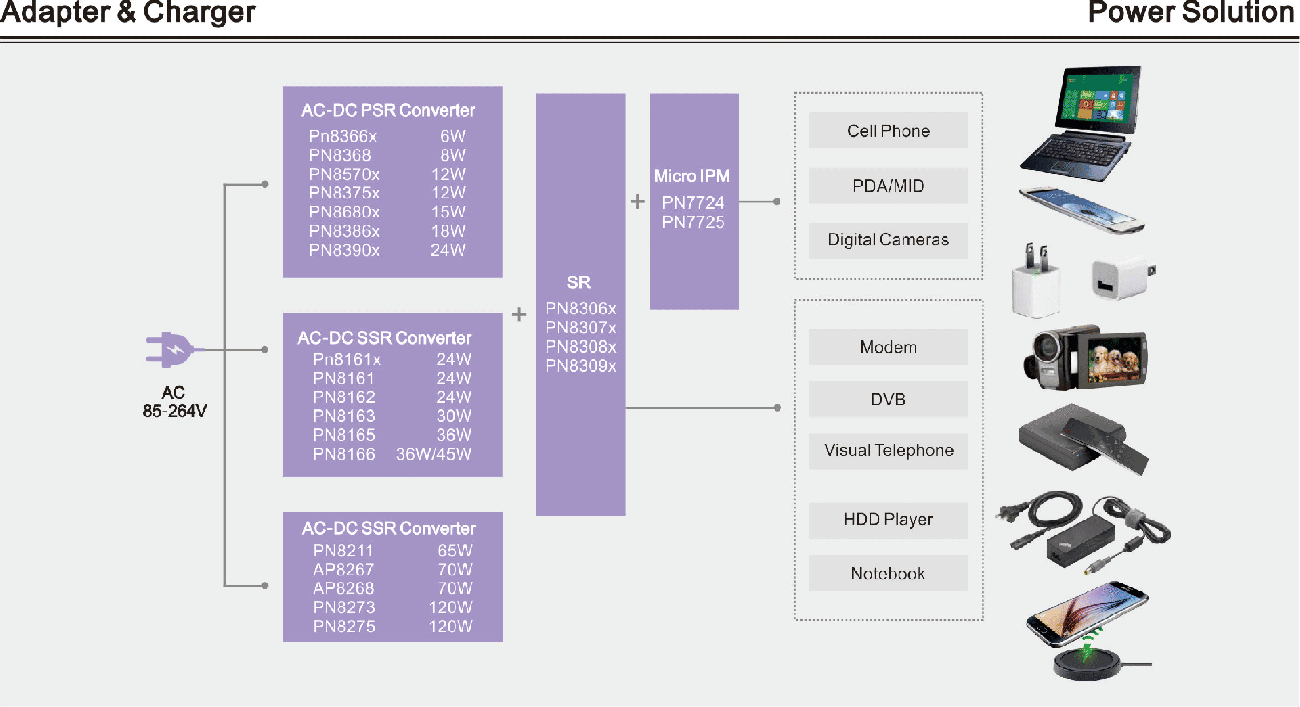

我们可以为您提供5-10W内置高压启动及功率管的PSR系列、10-18W内置高压启动及功率管的Flyback系列、15-90W外置MOS控制器系列等多种架构的产品，并提供高性价比、性能优异、品质稳定的Adapter/Charger系统参考设计方案。
| Product | Character | SW Voltage | Standby Power | RDS(on) | VDD Operation Voltage | Output Power | CC/CV precision | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| PN8366 | CC/CV PSR Converter | 650V | <50mW | 12Ω | 10~30V | 6W | ±5% | SOP7 | Charger/Adapter |
| PN8368 | CC/CV PSR Converter | 650V | <50mW | 8Ω | 10~30V | 8W | ±5% | SOP7 | Charger/Adapter |
| PN8370 | CC/CV PSR Converter | 650V | <50mW | 2.5Ω | 10~30V | 15W | ±5% | DIP8/SOP7 | Charger/Adapter |
| PN8680M | CC/CV PSR Converter | 650V | <50mW | 6Ω | 10~30V | 12W | ±5% | SOP8 | Charger/Adapter |
| PN8680P | CC/CV PSR Converter | 650V | <50mW | 2.5Ω | 10~30V | 15W | ±5% | SOP8 | Charger/Adapter |
| PN8386 | CC/CV PSR Converter | 650V | <50mW | 4Ω | 10~30V | 18W | ±5% | SOP8 | Charger/Adapter |
| PN8395 | CC/CV PSR Converter | 650V | <50mW | 3Ω | 10~30V | 24W | ±5% | DIP8/SOP8 | Charger/Ada |
| PN8570L | CC/CV PSR Converter | 800V（VCBO） | <75mW | IC =0.35A | 10~30V | 3.5W | ±5% | SOP7 | AC Line OVP |
| PN8570M | CC/CV PSR Converter | 800V（VCBO） | <75mW | IC =0.5A | 10~30V | 5W | ±5% | SOP7 | AC Line OVP |
| PN8570H | CC/CV PSR Converter | 800V（VCBO） | <75mW | IC =1.2A | 10~30V | 12W | ±5% | SOP7 | AC Line OVP |
| Product | Character | SW Voltage | Standby Power | RDS(on) | Adaptor Output Power | Open Frame Output Power | Frequency | Package | VDD Operation Voltage |
|---|---|---|---|---|---|---|---|---|---|
| PN8160 | Low Standby-Power Off-line PWM converter | 650V | <50mW | 3Ω | 18W/24W | 30W | 65/85kHz | DIP8/SOP8 | 10~38V |
| PN8160P | Low Standby-Power Off-line PWM Converter | 650V | <50mW | 3Ω | 18W/24W | 30W/36W | 125kHz(Max.) | DIP8 | 10~38V |
| PN8161 | Low Standby-Power Off-line PWM Converter | 690V | <50mW | 3Ω | 18W/24W | - | 125kHz(Max.) | DIP8/SOP8 | 10~38V |
| PN8162 | Low Standby-Power Off-line PWM Converter | 690V | <50mW | 3Ω | 24W | - | 125kHz(Max.) | DIP8/SOP8 | 10~38V |
| Product | Character | Standby Power |
Start-up Current |
VDD Operation Voltage |
Vcc_Clamp | Output Power | Frequency | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| AP8267 | PWM Controller | <100mW | 2uA | 8~26V | 27V | <70W | 65kHz | SOT23-6 | - |
| AP8268 | PWM Controller | <75mW | 2uA | 10~26V | 30V | <70W | 65kHz | SOT23-6 | - |
| PN8273 | PWM Controller | ﹣1.5mA | 10~40V | 40V | <120W | 65kHz | SOP7 | HV Start-up | |
| PN8275 | PWM Controller | <50mW | ﹣1.5mA | 10~40V | 40V | <120W | 65kHz | SOP7 | HV Start-up |
| PN8211 | PWM Controller | <50mW | ﹣1.0mA | 9~57V | 60V | 65W | 110kHz(Max.) | SOP7 | HV Start-up |
| Product | Character | Driver | Standby Power | Start-up Current | VDD Operation Voltage | Output Power | CC/CV precision | Package | Note |
|---|---|---|---|---|---|---|---|---|---|
| PN8235 | CC/CV PSR Controller | MOS | <50mW | 1.5mA | 10~30V | <36W | ±5% | SOP7 | HV Stat-up |
